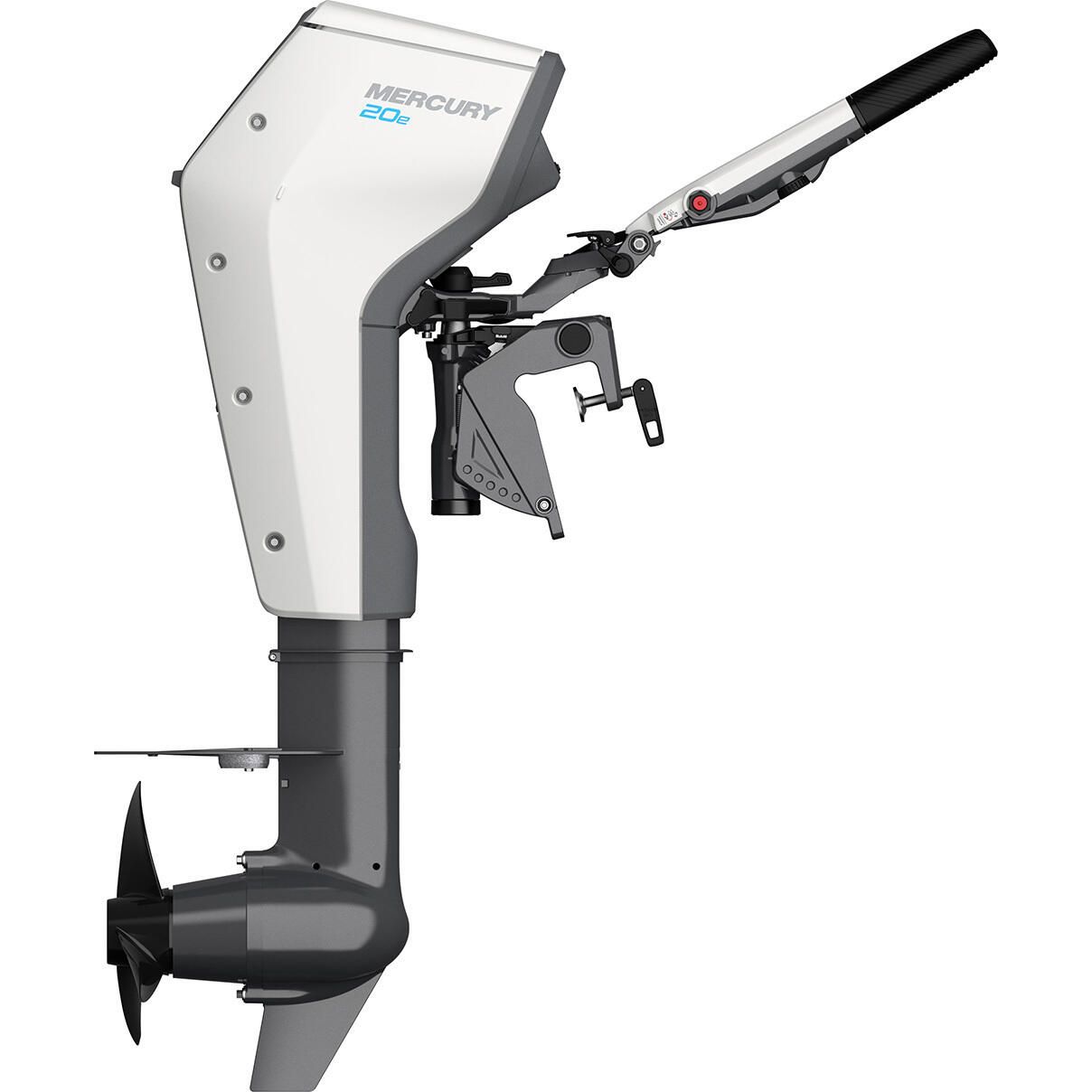

Mercury 2200W Tiller Electric Outboard Motor - Avator 20e - 2025

Mercury 2200W Tiller Electric Outboard Motor - Avator 20e: Complete Guide

From the morning bite to the evening cruise and every sandbar in between, Mercury Avator 20e electric outboards are engineered to empower your perfect day. Their modular batteries give you the flexibility to optimize your propulsion system for wherever your imagination leads you.

Why Choose the Mercury 2200W Tiller Electric Outboard Motor - Avator 20e
If you want clean, quiet, and reliable power for your boat, the Mercury Avator 20e delivers. With 2200W of rated prop shaft power, it performs like a 5 HP four-stroke outboard. You get instant torque, smooth acceleration, and a silent ride. This motor suits small boats like a 12' Lund WC-12 while keeping operation simple.

Key Features of the Mercury Avator 20e

Modular Batteries

• Connect the tiller model directly to one 2300Wh battery for portability

• Remote control and 35e models need an Avator Power Center and at least two batteries

• Expand runtime by linking up to four batteries with the Power Center

Power Center

• Distributes power from the battery bank

• Charges up to four connected batteries from one port

Digital Controls

• Console boats get instant throttle response

• Three control styles fit different console layouts

Strong Transverse Flux Motor

• First of its kind in the industry

• Delivers immediate torque

• Drives a high-thrust three-blade prop for efficiency

Performance

• Accelerates like a 5 HP outboard

• Smooth and quiet ride with no vibrations

• Zero direct emissions and no exhaust fumes

Durability and Ease of Use

• Corrosion-resistant materials for fresh and saltwater

• Easy storage with no fuel and no fumes

• Backed by Mercury warranty: 3 years for pleasure use, 1 year for commercial

Specifications at a Glance

• Battery Type: Li-Ion, 2300Wh

• Battery Weight: 48 lbs (21.7 kg)

• Motor Weight (Excl. Battery): 41 lbs (18.6 kg)

• Rated Power: 2200W

• Input Power: 2700W

• Voltage: 48V

• Standard Charger: 230W

• Propeller: 12.7" diameter x 7" pitch

• Steering: Tiller

• Battery IP Rating: IP67

• Warranty: 3 years pleasure, 1 year commercial

Practical Advice for Buyers

• If you want the lightest setup, stick with one 2300Wh battery.

• For longer trips, add a Power Center and multiple batteries.

• Store indoors during the off-season to protect the lithium-ion battery.

• Weigh your boat and load to match the correct battery setup.

FAQs About Mercury Avator 20e

1. What is the Mercury Avator 20e comparable to?
It delivers performance similar to a 5 HP four-stroke outboard.

2. How long does the battery last?
A single 2300Wh battery gives you several hours depending on throttle use. Adding up to four batteries extends range.

3. How much does the Mercury Avator 20e weigh?
The motor alone weighs 41 lbs. With battery installed, around 89 lbs.

4. What is the Mercury Avator 20e electric outboards price?
Pricing varies by retailer and battery configuration. Check the latest prices at Scott Electric Outboard.

5. Where to buy an Mercury Avator 20e electric outboards?
You can purchase through authorized dealers like Scott Electric Outboard.

6. Is it safe for saltwater use?
Yes. It uses corrosion-resistant materials and coatings for both fresh and saltwater.

Final Thoughts
The Mercury 2200W Tiller Electric Outboard Motor - Avator 20e offers clean power, strong torque, and flexible battery options. If you want smooth, quiet performance with no fumes, it is a strong choice. Whether you fish, cruise, or explore, this outboard is built to deliver reliable boating without the noise and maintenance of gas engines.
